Drill4J Backend

Drill4J Backend is responsible for receiving, processing and authorizing data.

Installation

There are two ways to install Drill4J Backend:

1. Using Docker
2. Using JAR file

Using Docker

1. To install Drill4J Backend using Docker, follow the steps described in local-deployment.

2. Additionally, you can also set up the environment variables (see below).

3. Ensure that Drill4J Backend is running successfully by checking the http://localhost:8090 endpoint. You should receive a response similar to:

   {

   "message": "Drill4J Admin Backend"

   }

Using JAR file

To install Drill4J Backend using a JAR file, follow these steps:

1. Install PostgreSQL 17.

2. Create a database and a user for Drill4J Backend.

3. Download the latest Drill4J Backend release (admin-shadow-<version>.zip file) from the releases page.

4. Unzip the admin-shadow-<version>.zip file.

5. Find the admin-app-<version>-all.jar file in the unzipped directory and move it to the root directory of the installation.

6. Set up the environment variables (see below).

7. Run the Drill4J Backend using the following command:

   java -jar admin-app-<version>-all.jar

8. Ensure that Drill4J Backend is running successfully by checking the http://localhost:8090 endpoint. You should receive a response similar to:

   {

   "message": "Drill4J Admin Backend"

   }

Configuration

Drill4J Backend is configured using environment variables. You can set them in a .env file in the root directory of the project.

Environment Variables

The following environment variables are used to configure Drill4J Backend with their default values:

Server Configuration

Environment Variable	Description	Default Value
PORT	Server port	8090
SSL_KEY_STORE	Path to the SSL key store
SSL_KEY_ALIAS	Alias for the SSL key
SSL_KEY_STORE_PASSWORD	Password for the SSL key store
SSL_PRIVATE_KEY_PASSWORD	Password for the private key

Database Configuration

Environment Variable	Description	Default Value
DRILL_DB_HOST	Database host	localhost
DRILL_DB_PORT	Database port	5432
DRILL_DB_NAME	Database name	drill
DRILL_DB_USER_NAME	Database username	postgres
DRILL_DB_PASSWORD	Database password	postgres
DRILL_DB_MAX_POOL_SIZE	Maximum pool size for the database	20

Authentication Configuration

Environment Variable	Description	Default Value
DRILL_JWT_SECRET	Secret for JWT authentication
DRILL_JWT_LIFETIME	Lifetime for JWT tokens	60 minutes
DRILL_OAUTH2_ENABLED	Enable OAuth2 authentication	false
DRILL_OAUTH2_AUTHORIZE_URL	OAuth2 authorization URL
DRILL_OAUTH2_ACCESS_TOKEN_URL	OAuth2 access token URL
DRILL_OAUTH2_USERINFO_URL	OAuth2 user info URL
DRILL_OAUTH2_CLIENT_ID	OAuth2 client ID
DRILL_OAUTH2_CLIENT_SECRET	OAuth2 client secret
DRILL_OAUTH2_SCOPES	OAuth2 scopes
DRILL_OAUTH2_REDIRECT_URL	OAuth2 redirect URL
DRILL_OAUTH2_AUTOMATIC_SIGN_IN	Enable automatic sign-in for OAuth2	false
DRILL_AUTH_SIMPLE_ENABLED	Enable simple authentication	true
DRILL_AUTH_SIMPLE_SIGN_UP_ENABLED	Enable sign-up for simple authentication	true

Metrics Configuration

Environment Variable	Description	Default Value
DRILL_METRICS_UI_BASE_URL	Base URL for the metrics UI
DRILL_METRICS_UI_BUILD_TESTING_REPORT_PATH	Path for the build testing report in the metrics UI	/dashboard/2

Scheduler Configuration

Environment Variable	Description	Default Value
DRILL_SCHEDULER_REFRESH_VIEWS_INTERVAL_IN_MINUTES	Interval in minutes for refreshing views	30
DRILL_SCHEDULER_DATA_RETENTION_JOB_CRON	Cron expression for the data retention job	0 0 1 * * ?

Swagger UI

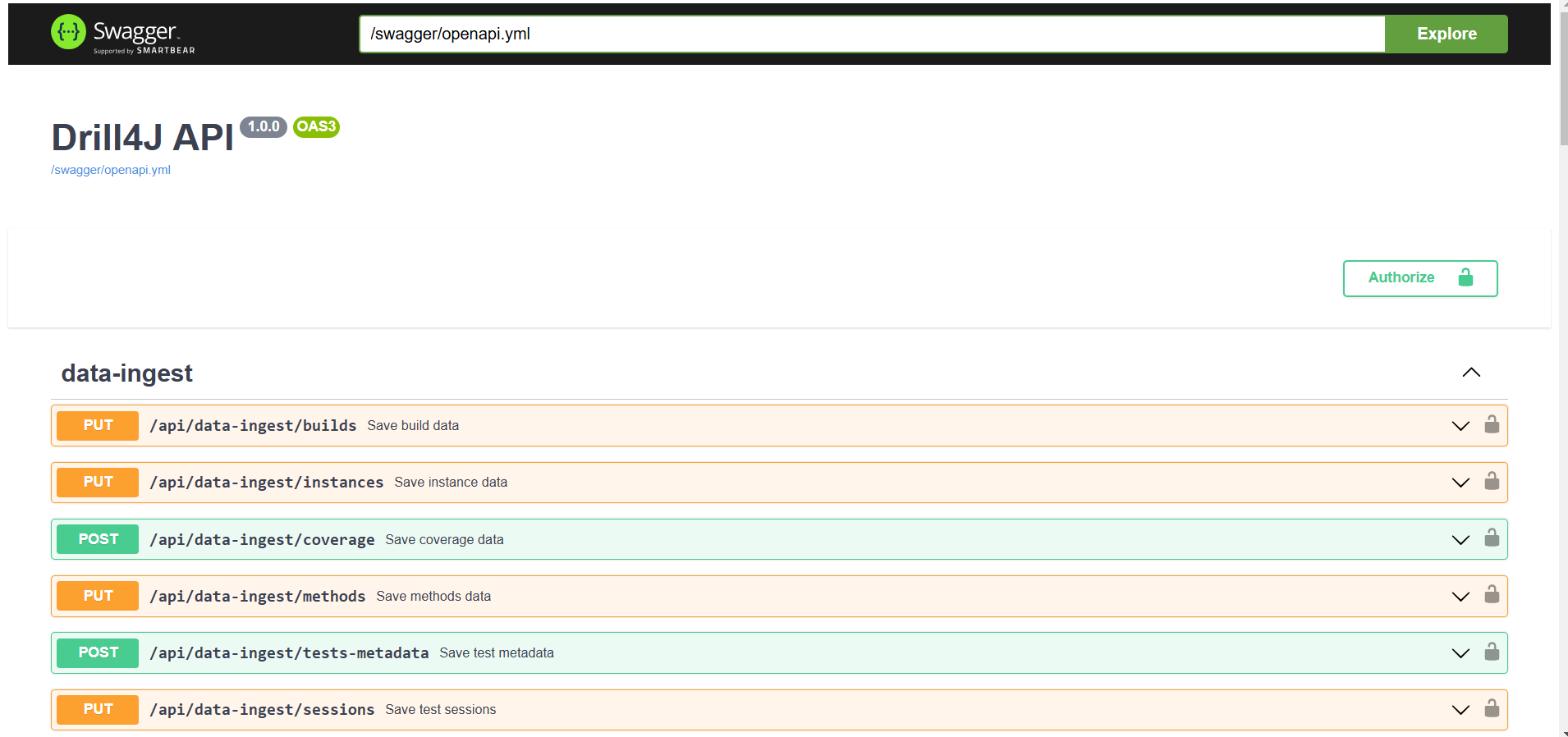

Drill4J Backend provides Swagger API documentation for easy exploration of available endpoints. To access the Swagger UI, open your browser and navigate to:

http://localhost:8090/swagger

This will display the interactive API documentation where you can view and test the available API endpoints:

Swagger UI

Authentication and Authorization

🚧 UNDER CONSTRUCTION. TO BE COMPLETED SOON 🚧

Troubleshooting

1. Миграция не применяется до конца / фейлится Причина - shared memory не выделена в контейнере PostgreSQL.
