Switch Scope Event Flow

Details

Precondition

An Agent has established a connection with the Drill Admin.

Flow

1. User executes HTTP request to finish/delete scope.
2. Admin does an action SwitchActiveScope.
3. Admin's plugin part finish/delete scope and sends InitActiveScope to the Agent's plugin part.
4. Agent's plugin part responds ScopeInitialized to Admin's plugin part.
5. Admin initializes new scope and recalculates build coverage.

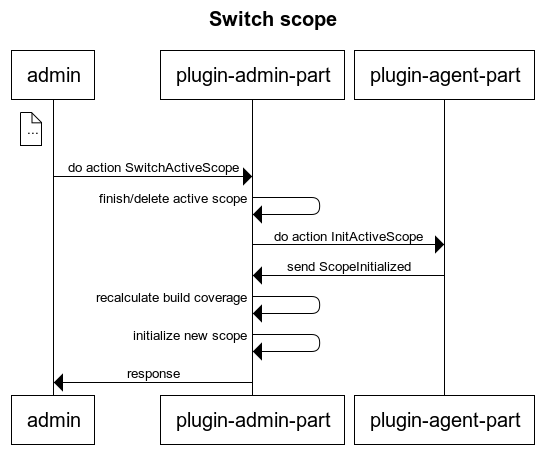

Sequence Diagram

API

Agent Incoming Messages:

@Serializable

@SerialName("INIT_ACTIVE_SCOPE")

data class InitActiveScope(val payload: InitScopePayload) : AgentAction()

@Serializable

data class InitScopePayload(

val id: String,

val name: String,

val prevId: String

)

Agent Outgoing Messages:

@SerialName("SCOPE_INITIALIZED")

@Serializable

data class ScopeInitialized(

val id: String,

val name: String,

val prevId: String,

val ts: Long

) : CoverMessage()

Admin Incoming Messages:

@SerialName("SWITCH_ACTIVE_SCOPE")

@Serializable

data class SwitchActiveScope(val payload: ActiveScopeChangePayload) : Action()

@Serializable

data class ActiveScopeChangePayload(

val scopeName: String,

val savePrevScope: Boolean = false,

val prevScopeEnabled: Boolean = true,

) : JvmSerializable
